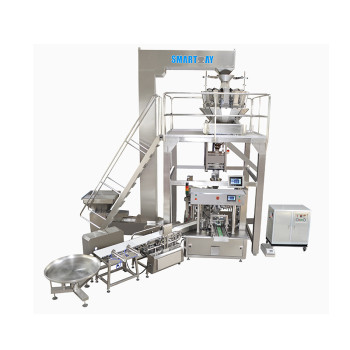

Multihead Weigher Rotary Packing Line Premade Bag Packing Line
- group name
- Packing line
- Min Order
- 1 set
- brand name
- SMART WEIGH
- model
- SW-PL6
- Nearest port for product export
- Zhongshan port, China
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T, L/C
- update time
- Mon, 14 Dec 2020 08:40:09 GMT
Paramtents
Construction Stainless steel 304
Stainless steel 316 Brushed finish
Packging & Delivery
-
Min Order1 set
Briefing
Standard stand up pouch packing machine for dried fruits, snacks for premade bag, stand up pouch, doypack, ect.
Detailed
Specification
Model |
SW-PL6 |
Weighing range |
10 head weigher: 10-1000 grams 14 head weigher: 10-2000 grams |
Max. speed |
40 bags/min |
Accuracy |
±1.5 grams |
Bag style | flat pouch, zipper pouch, stand up pouch, foil pouch, kraft paper pouch |
Bag size | Length 160-350 mm Width 110-240 mm |
Bag material | Laminated or PE film |
Drive system | Modular drive |
Control panel | 7" touch screen |
Air consumption | 1.5m3/min |
Voltage | 380V/50Hz or 60Hz; 3 phase; 6.75 kW |
Application
Beans
Snack
Candy
Corn flakes
Dried fruits
Shrimp
Mushroom
Nuts
Bag style
Features
◆ IP 65 waterproof, use water cleaning directly, save time while cleaning;
◇ Modular control system, more stability and lower maintenance fees;
◆ Production records can be checked at anytime or download to PC;
◇ Load cell or photo sensor checking to satisfy different requirements;
◆ Preset stagger dump function to stop blockage;
◇ Design linear feeder pan deeply to stop small granule products leaking out;
◆ Refer to product features, select automatic or manual adjust feeding amplitude;
◇ Food contact parts disassembling without tools, which is easier to clean;
◆ Multi-languages touch screen for various clients, English, French, Spanish, etc;
