Dry Food Almond Walnut Peanut Cashew Nuts packing machine Pistachio Packing Machine

Dry Food Almond Walnut Peanut Cashew Nuts packing machine Pistachio Packing Machine
Dry Food Almond Walnut Peanut Cashew Nuts packing machine Pistachio Packing MachineDry Food Almond Walnut Peanut Cashew Nuts packing machine Pistachio Packing MachineDry Food Almond Walnut Peanut Cashew Nuts packing machine Pistachio Packing MachineDry Food Almond Walnut Peanut Cashew Nuts packing machine Pistachio Packing Machine
group name
Packing line
Min Order
1 set
brand name
SMART WEIGH
model
SW-PL1
Nearest port for product export
Zhongshan port, China
Delivery clauses under the trade mode
FOB, CIF, EXW
Acceptable payment methods
T/T, L/C
update time
Mon, 07 Sep 2020 19:56:04 GMT

Paramtents

  • Construction Stainless steel 304

  • Brushed finish Stainless steel 316

Packging & Delivery

  • Min Order1 set

Briefing

Walnut Raisin Pistachio Almond Peanut Cashew Nuts dried fruit dry food packing machine

Detailed

    Smart Weigh is working on designing and proceducing dry food nuts packing machine solution. This solution is flexible for all kinds of dry food bagging machine, such as nuts packing machine, almond packing machine, walnut packing machine, cashew nut packing machine, hazelnut packing machine, chesnut packing machine, pecan packing machine, pistachio nuts packing machine and etc.

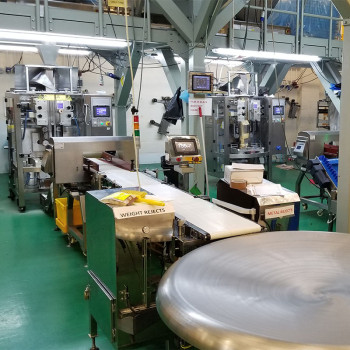

Machine list
1. Z bucket elevator
2. 14 head multihead weigher
3. Vertical packing machine (quad-sealed bag packing machine in video)
4. Support platform
5. Output conveyor
6. Metal detector
Specification
Weighing range
10-2000 grams
Max speed
65 bags/min
Accuracy
±1.5 grams
Hopper Volume
1.6L
Bag style
Pillow bag, gusset bag, quad-sealed bag
Bag size
Pillow bag: length 80-350 mm, width 60-300 mm;
Quad-sealed bag: length 100-350mm, front width 70-180 mm,
side width 40-100mm, sealed width 5-10 mm.
Bag material
Laminated film or single layer film
Drive system
Multihead weigher: modular drive
Packing machine: PLC control
Control panel
7" touch screen
Air consumption
1.5m3/min
Voltage
220V/50HZ or 60HZ, single phase, 5.95KW
Application
Almond
Cashew nut
Pistachio nuts
Nuts
Bag style




Features
Wide and flat type linear feeding pan
This design of linear feeding pan is suitable nuts projects, it ensure fast feeding, good for speed.
Independentn discharge chute
One unit hopper work with 1 discharge chute, separate discharge chute could reduce the nuts dropping time, speed up machine.
Good bag shaping
Accurate mechinical parts is good for bag shaping and speed.
Rotatable checkweigher touch screen
Rotatable touch screen is convenient for worker to monitor the bag weight.
